Unshielded hi-flex PUR data cable

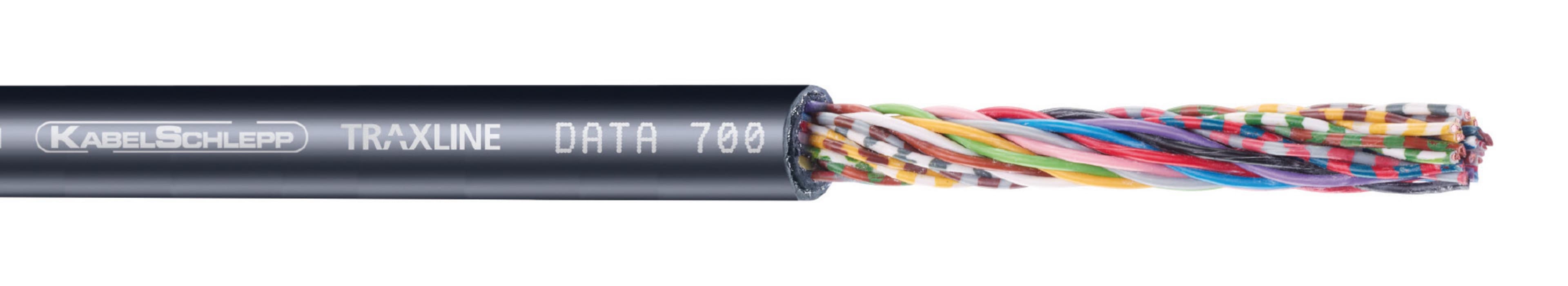

TRAXLINE® DATA 700
Layer stranded PUR data cable for standard data transmission in heavy-duty carrier systems. 7 million motion cycles, travel lengths up to 200 m.
DataPUR JacketUnshielded
Unshielded hi-flex PUR data cable
Voltage300/500 V
Temp Range-40 °C to +80 °C
Motion Cycles7 million
Travel Lengthup to 200 m
Bend Radius7.5 × cable OD
Key Features
PUR outer jacket — oil and chemical resistant
Layer stranded conductors
7 million motion cycles
Extended travel up to 200 m
Type Selection
Complete list of orderable configurations — contact RSTECH for pricing and availability.
| Core Number × Cross-section | Part No. | max. Ø mm | Cable weight kg/m | Copper index kg/m |
|---|---|---|---|---|
| 6x0.25² | 45355 | 6.1 | 0.046 | 0.014 |
| 7x0.25² | 45356 | 6.4 | 0.048 | 0.017 |
| 8x0.25² | 45357 | 6.8 | 0.054 | 0.019 |
| 9x0.25² | 45358 | 7.2 | 0.06 | 0.023 |
| 10x0.25² | 45359 | 7.6 | 0.07 | 0.024 |
| 12x0.25² | 45360 | 8.4 | 0.084 | 0.029 |
| 15x0.25² | 45361 | 9.1 | 0.098 | 0.039 |
| 3x0.34² | 45372 | 5.3 | 0.034 | 0.01 |
| 4x0.34² | 45373 | 5.6 | 0.039 | 0.014 |
| 5x0.34² | 45374 | 6 | 0.046 | 0.017 |
| 7x0.34² | 45376 | 6.9 | 0.062 | 0.024 |
| 8x0.34² | 45377 | 7.4 | 0.07 | 0.027 |
| 12x0.34² | 45380 | 9.1 | 0.103 | 0.041 |
| 15x0.34² | 45382 | 9.9 | 0.122 | 0.053 |
Additional configurations available upon request. Contact RSTECH Electronics for pricing, lead times and samples.
Request a QuoteApplications
- Data transmission in industrial automation
- Sensor and actuator wiring
