TRAXLINE® Data
PVC and PUR data cables with individually shielded pairs for RS-485, RS-422, and high-speed Ethernet. 6 series available.
Indiv. Shielded

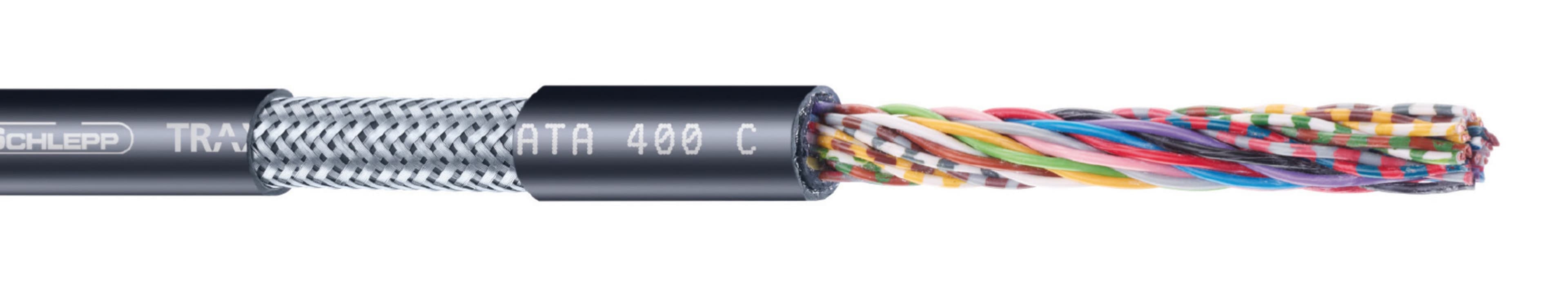

TRAXLINE® DATA 400 C
PVC
Hi-flex shielded PVC data cable with individually shielded pairs
- Voltage :
- 300/500 V
- Temp Range :
- -5 °C to +80 °C
- Motion Cycles :
- 4 million
- Travel Length :
- up to 50 m
Part Numbers
486234862748638
Unshielded

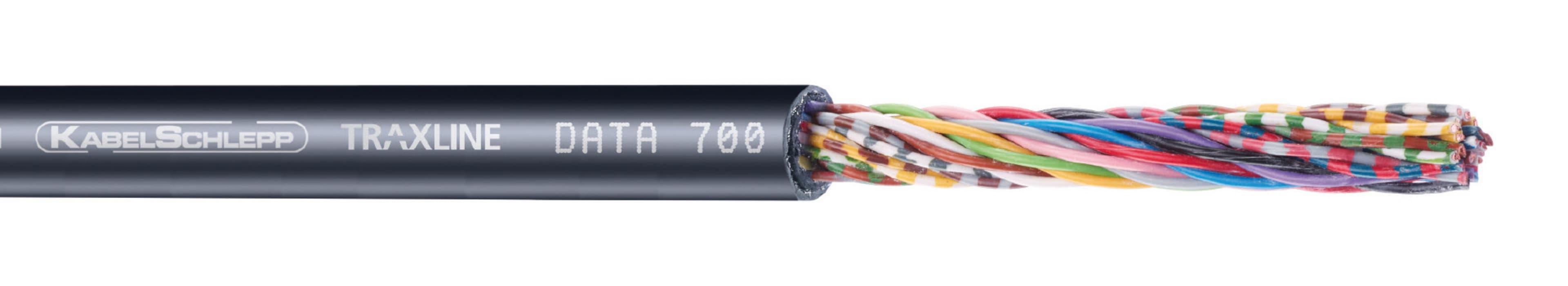

TRAXLINE® DATA 700
PUR
Unshielded hi-flex PUR data cable
- Voltage :
- 300/500 V
- Temp Range :
- -40 °C to +80 °C
- Motion Cycles :
- 7 million
- Travel Length :
- up to 200 m
Part Numbers
453554535645357
Indiv. Shielded

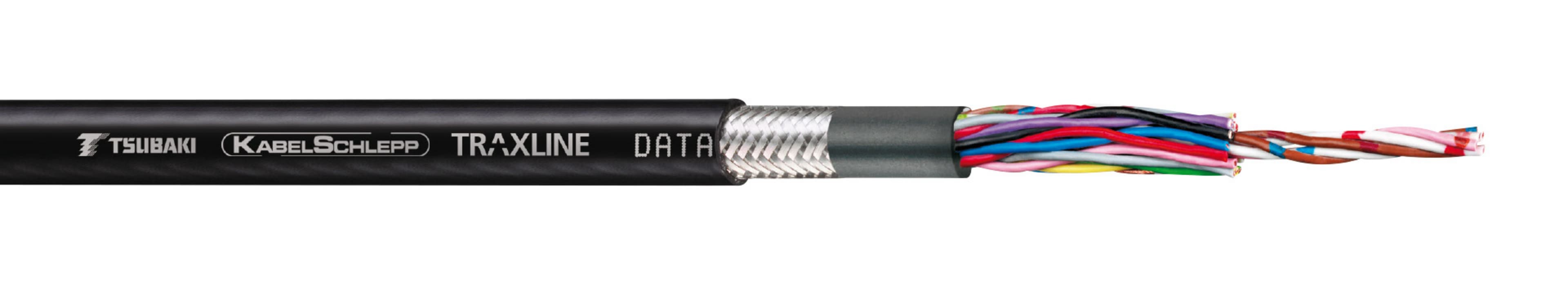

TRAXLINE® DATA 700 TPi C
PUR
Hi-flex shielded PUR data cable with twisted pairs
- Voltage :
- 300/500 V
- Temp Range :
- -40 °C to +80 °C
- Motion Cycles :
- 7 million
- Travel Length :
- up to 200 m
Part Numbers
456224562345624
Double Shielded

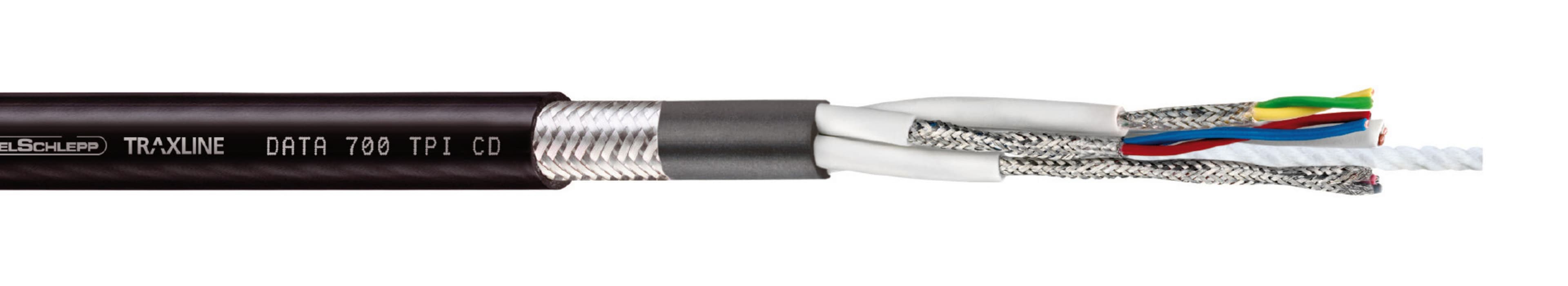

TRAXLINE® DATA 700 TPi CD
PUR
Hi-flex double-shielded PUR data cable with twisted pairs
- Voltage :
- 300/500 V
- Temp Range :
- -40 °C to +80 °C
- Motion Cycles :
- 7 million
- Travel Length :
- up to 200 m
Part Numbers
456614566245664
Double Shielded

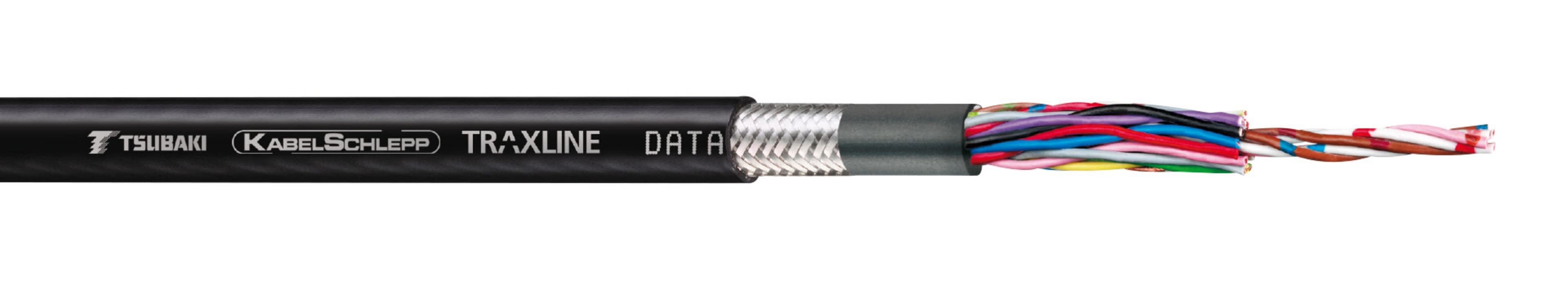

TRAXLINE® DATA 700 TPi CD 1 kV
PUR
Hi-flex double-shielded 1 kV rated PUR data cable with twisted pairs
- Voltage :
- 0.6/1 kV
- Temp Range :
- -40 °C to +80 °C
- Motion Cycles :
- 7 million
- Travel Length :
- up to 200 m
Part Numbers
456674566945679
Indiv. Shielded
TRAXLINE® DATA 1000 TPi C TPE
TPE
Hi-flex shielded TPE data cable with twisted pairs — extreme duty
- Voltage :
- 300/500 V
- Temp Range :
- -50 °C to +90 °C
- Motion Cycles :
- 10 million
- Travel Length :
- up to 400 m
Part Numbers
496224962349624
